1 kb Plus DNA Ladder

This product was previously named the 2-Log DNA Ladder. There have been no changes to product formulation or specifications. This product is available in Quick-Load Purple format - enjoy the convenience of a ready-to-load format.

Product Introduction

A single convenient ladder for 100 bp up to 10 kb (100 bp and 1 kb ladder in one!)

  • Value pricing
  • Supplied with free vial of Gel Loading Dye, Purple (6X), no SDS (NEB #B7025)
  • Easy to identify reference bands
  • Small size suitable for 200 gel lanes; large size suitable for 1000 gel lanes
Catalog # Size Concentration
N3200S 200.0 gel lanes (0.1 ml) 1000 µg/ml
N3200L 1000.0 gel lanes (0.5 ml) 1000 µg/ml

Product Information

Description



A number of proprietary plasmids are digested to completion with appropriate restriction enzymes to yield 19 bands suitable for use as molecular weight standards for agarose gel electrophoresis. This digested DNA includes fragments ranging from 100 bp to 10 kb. The 0.5, 1.0 and 3.0 kb bands have increased intensity to serve as reference points. The approximate mass of DNA in each of the bands is provided (assuming a 1.0 μg load) for approximating the mass of DNA in comparably intense samples of similar size.

Comes supplied with 1 vial of Gel Loading Dye, Purple (6X), no SDS.

NEB also offers a Quick-Load version of this ladder with purple dye.

  • Recommended gel percentage range: 1-1.4%
  • Optimum separation on 1.2%

N3200_thumb

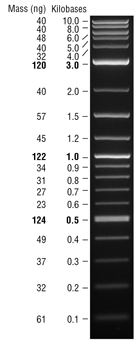

1 kb Plus DNA Ladder visualized by ethidium bromide staining on a 1.0% TBE agarose gel.
Mass values are for 1 µg/lane.
This product is related to the following categories:
DNA Markers & Ladders Products
This product can be used in the following applications:
DNA Analysis

Reagents Supplied

Reagents Supplied

The following reagents are supplied with this product:

NEB # Component Name Component # Stored at (°C) Amount Concentration

Properties & Usage

Bases

Fragment Mass (ng) bp
1 40 10002
2 40 8001
3 48 6001
4 40 5001
5 32 4001
6 120 3001
7 40 2017
8 57 1517
9 45 1200
10 122 1000
11 34 900
12 31 800
13 27 700
14 23 600
15 124 500/517
16 49 400
17 37 300
18 32 200
19 61 100

Effective Size Range

100bp to 10,002bp

Storage Buffer

10 mM Tris-HCl
1 mM EDTA
pH 8 @ 25°C

Product Notes

  1. This ladder was not designed for precise quantification of DNA mass but can be used for approximating the mass of DNA in comparably intense samples of similar size.
  2. We recommend loading 0.5-1 μg of the 1 kb Plus DNA Ladder diluted in sample buffer.
  3. All fragments have 4-base, 5´ overhangs that can be end labeled using T4 Polynucleotide Kinase (#M0201) or filled-in using DNA Polymerase I, Klenow Fragment (#M0210) (1). Use α-[32P] dATP or α-[32P] dTTP for the fill-in reaction.
  4. 1 kb Plus DNA Ladder is stable for at least 3 months at 4°C.
  5. For long term storage, store at -20°C. If samples need to be diluted, use TE or other buffer of minimal ionic strength. DNA may denature if diluted in dH20.
  6. 1X Gel Loading Dye, Purple (6X), no SDS:
    2.5% Ficoll®-400
    10mM EDTA
    3.3mM
    Tris-HCL (pH 8.0@25°C)
    0.02% Dye 1
    0.001% Dye 2
  7. Due to the limitations of the acrylamide gel technology, one or two extra bands may be visible on the DNA ladders when run on a polyacrylamide gel.

References

  1. Sambrook, J., Fritsch, E.F. and Maniatis, T. (1989). Molecular Cloning: A Laboratory Manual(2nd Ed.). 10.51-10.67.

Protocols, Manuals & Usage

Protocols

  1. End-labeling Protocol
  2. Suggested Loading Protocol for DNA Ladders & Markers

Tools & Resources

Selection Charts

FAQs & Troubleshooting

FAQs

  1. Why are there extra bands visible on polyacrylamide gels?
  2. What are the overhangs on the DNA ladder fragments? Can I end-label them using the T4 polynucleotide kinase (PNK)? What about the Klenow fragment?
  3. Why are the DNA ladders showing up on my Southern blot? What is the sequence or composition of the ladder bands?
  4. How can I quantify the amount of DNA in each band of a marker?
  5. Can I use Midori Green with the DNA Ladders from NEB?
  6. Can I use SYBR® and/or GelRed® dyes with the DNA Ladders from NEB?
  7. Why is my DNA Ladder floating out the wells? Why are there no bands visible in my DNA ladder gel lane?
  8. What are the differences in the four versions of the 1 kb Plus (formerly called the 2-Log DNA Ladder), 100 bp and 1 kb DNA Ladders that NEB sells?

Tech Tips

To make it ready-to-load, dilute in TE buffer instead of water.

Quality, Safety & Legal

Quality Assurance Statement

Quality Control tests are performed on each new lot of NEB product to meet the specifications designated for it. Specifications and individual lot data from the tests that are performed for this particular product can be found and downloaded on the Product Specification Sheet, Certificate of Analysis, data card or product manual. Further information regarding NEB product quality can be found here.

Specifications

The Specification sheet is a document that includes the storage temperature, shelf life and the specifications designated for the product. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]

Certificate Of Analysis

The Certificate of Analysis (COA) is a signed document that includes the storage temperature, expiration date and quality controls for an individual lot. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]_[Lot Number]

Safety DataSheets

The following is a list of Safety Data Sheet (SDS) that apply to this product to help you use it safely.

Legal and Disclaimers

Products and content are covered by one or more patents, trademarks and/or copyrights owned or controlled by New England Biolabs, Inc (NEB). The use of trademark symbols does not necessarily indicate that the name is trademarked in the country where it is being read; it indicates where the content was originally developed. The use of this product may require the buyer to obtain additional third-party intellectual property rights for certain applications. For more information, please email busdev@neb.com.

This product is intended for research purposes only. This product is not intended to be used for therapeutic or diagnostic purposes in humans or animals.
