TriDye™ 1 kb Plus DNA Ladder

This product was previously named the TriDye™ 2-Log DNA Ladder. There have been no changes to product formulation or specifications.

Product Introduction

  • Size range: 100 bp to 10 kb
  • Convenient, ready-to-load format
  • Formulated with 3 different tracking dyes
  • Easy to identify reference bands
  • Suitable for 250 gel lanes



Catalog # Size Concentration
N3270S 250.0 gel lanes (1.25 ml) 100 µg/ml

Product Information

Description



TriDye™ 1 kb Plus DNA Ladder is a pre-mixed, ready-to-load molecular weight marker containing 3 dyes which serve as visual aids to monitor the progress of migration during agarose gel electrophoresis.

The DNA Ladder consists of proprietary plasmids which are digested to completion with appropriate restriction enzymes to yield 19 bands suitable for use as molecular weight standards for agarose gel electrophoresis. This digested DNA includes fragments ranging from 100 bp to 10 kb. The 0.5, 1.0 and 3.0 kb bands have increased intensity to serve as reference points.

  • Recommended gel percentage range: 1-1.4%
  • Optimum separation on 1.2%

TriDye During Electrophoresis: On a standard 1% agarose gel in 1X TBE, xylene cyanol FF migrates at approximately 4 kb, bromophenol blue at approximately 300 bp and the orange G at approximately 50 bp. As the percentage of agarose changes, the migration rates of the dyes relative to migration rates of the DNA will change.




2-Log DNA Ladder

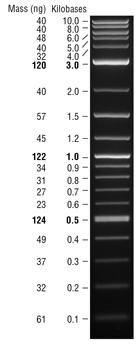

1 kb Plus DNA Ladder visualized by ethidium bromide staining on a 1.0% TBE agarose gel. Mass values are for 1 µg/lane.
This product is related to the following categories:
DNA Markers & Ladders Products
This product can be used in the following applications:
DNA Analysis

Reagents Supplied

Reagents Supplied

The following reagents are supplied with this product:

NEB # Component Name Component # Stored at (°C) Amount Concentration

Properties & Usage

Bases

Fragment Mass (ng) bp
1 40 10002
2 40 8001
3 48 6001
4 40 5001
5 32 4001
6 120 3001
7 40 2017
8 57 1517
9 45 1200
10 122 1000
11 34 900
12 31 800
13 27 700
14 23 600
15 124 500/517
16 49 400
17 37 300
18 32 200
19 61 100

Effective Size Range

100bp to 10,002bp

Storage Buffer

0.006% Xylene Cyanol
10 mM Tris-HCl
10 mM EDTA
10% Glycerol
0.006% bromophenol blue
0.06% Orange G
pH 8 @ 25°C

Product Notes

  1. The TriDye DNA Ladder was not designed for precise quantification of DNA mass but can be used for approximating the mass of DNA in comparably intense samples of similar size.
  2. We recommend loading 5-10 μl (0.5-1.0 μg) of TriDye DNA ladder per gel lane.
  3. In general, it is recommended to load 1ul per mm of gel lane.
  4. TriDye DNA Ladder is stable for at least 6 months at 25°C.
  5. For long term storage, store at 4°C or -20°C. If stored at -20°C, mix well after thawing.

References

  1. Sambrook, J., Fritsch, E.F. and Maniatis, T. (1989). Molecular Cloning: A Laboratory Manual (2nd Ed.). 10.51-10.67.

Protocols, Manuals & Usage

Protocols

  1. Protocol for Product TriDye™ 1 kb Plus DNA Ladder (NEB #N3270)

Tools & Resources

Selection Charts

FAQs & Troubleshooting

FAQs

  1. Why are the DNA ladders showing up on my Southern blot? What is the sequence or composition of the ladder bands?
  2. How can I quantify the amount of DNA in each band of a marker?
  3. Can I use Midori Green with the DNA Ladders from NEB?
  4. Can I use SYBR® and/or GelRed® dyes with the DNA Ladders from NEB?
  5. Why is my DNA Ladder floating out the wells? Why are there no bands visible in my DNA ladder gel lane?
  6. What are the differences in the four versions of the 1 kb Plus (formerly called the 2-Log DNA Ladder), 100 bp and 1 kb DNA Ladders that NEB sells?

Tech Tips

Mix well before use, especially after thawing.
