Product Class: Other

Quick-Load® 1 kb Plus DNA Ladder

This product was previously named the Quick-Load® 2-Log DNA Ladder. There have been no changes to product formulation or specifications.This product is available in Quick-Load Purple format - enjoy sharper bands, no UV shadow, and a lower price.

Product Introduction

  • Size range:  100 bp to 10 kb
  • Convenient, ready-to-load format
  • Formulated with bromophenol blue dye
  • Easy to identify reference bands
  • Suitable for 250 gel lanes
Catalog # Size Concentration
N0469S 250.0 gel lanes (1.25 ml) 100 µg/ml

Product Information

Description



Quick-Load® 1 kb Plus DNA Ladder is a pre-mixed, ready-to-load molecular weight marker containing bromophenol blue as a tracking dye.

The DNA Ladder consists of proprietary plasmids which are digested to completion with appropriate restriction enzymes to yield 19 bands suitable for use as molecular weight standards for agarose gel electrophoresis. This digested DNA includes fragments ranging from 100 bp to 10 kb. The 0.5, 1.0 and 3.0 kb bands have increased intensity to serve as reference bands.

NEB also offers a Quick-Load version of this ladder with purple dye.

  • Recommended gel percentage range: 1-1.4%
  • Optimum separation on 1.2%

N0469_thumb

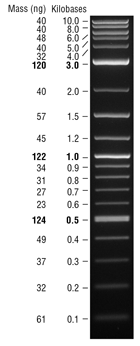

Quick-Load 1 kb Plus DNA Ladder visualized by ethidium bromide staining on a 1.0% TBE agarose gel.

Mass values are for 1 µg/lane.

Suggested Load: 5 to 10 µl/lane.
This product is related to the following categories:
DNA Markers & Ladders Products
This product can be used in the following applications:
DNA Analysis

Reagents Supplied

Reagents Supplied

The following reagents are supplied with this product:

NEB # Component Name Component # Stored at (°C) Amount Concentration

Properties & Usage

Bases

Fragment Mass (ng) bp
1 40 10,002
2 40 8,001
3 48 6,001
4 40 5,001
5 32 4,001
6 120 3,001
7 40 2,017
8 57 1,517
9 45 1,200
10 122 1,000
11 34 900
12 31 800
13 27 700
14 23 600
15 124 500 / 517
16 49 400
17 37 300
18 32 200
19 61 100

Effective Size Range

100bp to 10,002bp

Storage Buffer

3.3 mM Tris-HCl
11 mM EDTA
0.015% bromophenol blue
0.017% SDS
2.5% Ficoll®-400
pH 8 @ 25°C

Product Notes

  1. Preparation of DNA: The double-stranded DNA is digested to completion with appropriate restriction enzymes, phenol extracted and equilibrated in storage buffer.
  2. We recommend loading 5-10 μl (0.5-1.0 μg) of Quick-Load 1 kb Plus DNA Ladder per gel lane.
  3. In general, it is recommended to load 1µl per mm of gel lane.
  4. The Quick-Load DNA Ladder is not intended for precise quantification of DNA mass but can be used for approximating the mass of DNA in comparably intense samples of similar size.
  5. Quick-Load DNA Ladder is stable for at least 6 months at 25°C.
  6. For long term storage, store at 4°C or -20°C. If stored at -20°C, mix well after thawing.

References

  1. Sambrook, J., Fritsch, E. F. and Maniatis, T. (1989). Molecular Cloning: A Laboratory Manual,(2nd ed.), Cold Spring Harbor: Cold Spring Harbor Laboratory Press. 10.51-10.67.

Protocols, Manuals & Usage

Protocols

  1. Protocol for Quick-Load 1 kb Plus DNA Ladder (NEB #N0469)

Tools & Resources

Selection Charts

FAQs & Troubleshooting

FAQs

  1. Why are the DNA ladders showing up on my Southern blot? What is the sequence or composition of the ladder bands?
  2. How can I quantify the amount of DNA in each band of a marker?
  3. Can I use Midori Green with the DNA Ladders from NEB?
  4. Can I use SYBR® and/or GelRed® dyes with the DNA Ladders from NEB?
  5. Why is my DNA Ladder floating out the wells? Why are there no bands visible in my DNA ladder gel lane?
  6. What are the differences in the four versions of the 1 kb Plus (formerly called the 2-Log DNA Ladder), 100 bp and 1 kb DNA Ladders that NEB sells?

Tech Tips

Mix well before use, especially after thawing.

Quality, Safety & Legal

Quality Assurance Statement

Quality Control tests are performed on each new lot of NEB product to meet the specifications designated for it. Specifications and individual lot data from the tests that are performed for this particular product can be found and downloaded on the Product Specification Sheet, Certificate of Analysis, data card or product manual. Further information regarding NEB product quality can be found here.

Specifications

The Specification sheet is a document that includes the storage temperature, shelf life and the specifications designated for the product. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]

Certificate Of Analysis

The Certificate of Analysis (COA) is a signed document that includes the storage temperature, expiration date and quality controls for an individual lot. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]_[Lot Number]

Safety DataSheets

The following is a list of Safety Data Sheet (SDS) that apply to this product to help you use it safely.

Legal and Disclaimers

Products and content are covered by one or more patents, trademarks and/or copyrights owned or controlled by New England Biolabs, Inc (NEB). The use of trademark symbols does not necessarily indicate that the name is trademarked in the country where it is being read; it indicates where the content was originally developed. The use of this product may require the buyer to obtain additional third-party intellectual property rights for certain applications. For more information, please email busdev@neb.com.

This product is intended for research purposes only. This product is not intended to be used for therapeutic or diagnostic purposes in humans or animals.

New England Biolabs (NEB) is committed to practicing ethical science – we believe it is our job as researchers to ask the important questions that when answered will help preserve our quality of life and the world that we live in. However, this research should always be done in safe and ethical manner. Learn more.

Trademarks

QUICK-LOAD® is a registered trademark of New England Biolabs, Inc.
FICOLL® is a registered trademark of GE Healthcare Bio-Sciences AB.
