OneTaq® DNA Polymerase
NEBU cloned at NEB recombinant No pcr 5

Product Introduction

The ONE polymerase for your endpoint PCR needs. OneTaq DNA Polymerase is an optimized blend of Taq and Deep Vent® DNA polymerases for use with routine and difficult PCR experiments.

  • 2X higher fidelity than Taq
  • Ideal for routine, AT- or GC-rich templates
  • Hot start and master mix versions available
Catalog # Size Concentration
M0480S 200.0 units 5000 units/ml
M0480L 1000.0 units 5000 units/ml
M0480X 5000.0 units 5000 units/ml

Featured Videos

View Video Library
  • Amplify_GC_rich_DNA_TN

    How to Amplify GC-rich DNA

  • PCRTips_VideoThumb

    5 Tips for Setting Up Your PCR

  • TmImportance_VideoThumb

    Why is Tm Important in Primer Design?

  • PCROverview_thumb

    Overview of PCR

Product Information

Description

The 3´→ 5´ exonuclease activity of Deep Vent DNA Polymerase increases the fidelity and robust amplification of Taq DNA Polymerase (1) . The OneTaq Reaction Buffers and High GC Enhancer have been formulated for robust yields with minimal optimization, regardless of a template’s GC content.

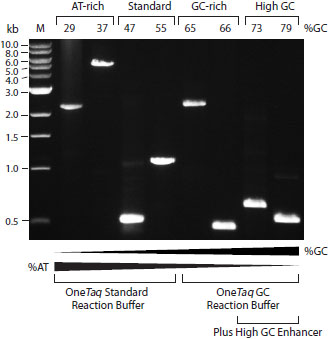

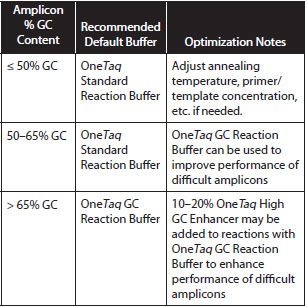

OneTaq DNA Polymerase is supplied with two 5X buffers: (Standard and GC), as well as a High GC Enhancer solution. For most routine and/or AT-rich amplicons (Lambda, etc.) or complex amplicons with up to ~65% GC content, OneTaq Standard Reaction Buffer provides robust amplification. For GC-rich amplicons, the OneTaq GC Reaction Buffer can improve both performance and yield. For particularly high GC or difficult amplicons, the OneTaq High GC Enhancer can be added at a final concentration of 10–20% to reactions containing OneTaq GC Reaction Buffer.

Comparison of OneTaq Products to Other Commercially Available Polymerases

OneTaq_ComparisonChart_0220
Amplification of a selection of high GC human genomic DNA targets demonstrates OneTaq performance. All polymerases were cycled according to manufacturer’s recommendations, including the use of additives to enhance the amplification of targets with high GC content. Yield (dot size) and purity (color) of reaction product were quantified from triplicate reactions on a Perkin Elmer LabChip®. A large, dark green dot represents the highest yield and purity.


pcr amplification, amplification ,dna amplification



Product Source

An E. coli strain that carries the Taq DNA Polymerase gene from Thermus aquaticus YT-1 and an E. coli strain that carries the Deep Vent® DNA Polymerase gene from Pyrococcus species GB-D.
This product is related to the following categories:
OneTaq® DNA Polymerases Products,
Taq DNA Polymerase Products,
This product can be used in the following applications:
Multiplex PCR,
Specialty PCR,
Routine PCR,
PCR

Reagents Supplied

Reagents Supplied

The following reagents are supplied with this product:

NEB # Component Name Component # Stored at (°C) Amount Concentration
  • M0480S     -20
      OneTaq® DNA Polymerase M0480SVIAL -20 1 x 0.04 ml 5,000 units/ml
      OneTaq® Standard Reaction Buffer Pack B9022SVIAL -20 1 x 2 ml 5 X
      OneTaq® GC Reaction Buffer Pack B9023SVIAL -20 1 x 2 ml 5 X
      OneTaq® High GC Enhancer B9026AVIAL -20 1 x 2 ml Not Applicable
  • M0480L     -20
      OneTaq® DNA Polymerase M0480LVIAL -20 1 x 0.2 ml 5,000 units/ml
      OneTaq® Standard Reaction Buffer Pack B9022SVIAL -20 5 x 2 ml 5 X
      OneTaq® GC Reaction Buffer Pack B9023SVIAL -20 3 x 2 ml 5 X
      OneTaq® High GC Enhancer B9026AVIAL -20 3 x 2 ml Not Applicable
  • M0480X     -20
      OneTaq® DNA Polymerase M0480L -20 5 x 1,000 units 5,000 units/ml
      OneTaq® DNA Polymerase M0480LVIAL -20 1 x 0.2 ml 5,000 units/ml
      OneTaq® Standard Reaction Buffer Pack B9022SVIAL -20 5 x 2 ml 5 X
      OneTaq® GC Reaction Buffer Pack B9023SVIAL -20 3 x 2 ml 5 X
      OneTaq® High GC Enhancer B9026AVIAL -20 3 x 2 ml Not Applicable

Properties & Usage

Unit Definition

One unit is defined as the amount of enzyme that will incorporate 15 nmol of dNTP into acid insoluble material in 30 minutes at 75°C.

Reaction Conditions

1X OneTaq® Standard Reaction Buffer Pack

1X OneTaq® Standard Reaction Buffer Pack
20 mM Tris-HCl
22 mM NH4Cl
22 mM KCl
1.8 mM MgCl2
0.06% IGEPAL® CA-630
0.05% Tween® 20
(pH 8.9 @ 25°C)

Usage Concentration

1.25 units/50μl reaction

Storage Buffer

10 mM Tris-HCl
100 mM KCl
1 mM DTT
0.1 mM EDTA
50% Glycerol
0.5% Tween® 20
0.5% IGEPAL® CA-630
pH 7.4 @ 25°C

Heat Inactivation

No

5' - 3' Exonuclease

Yes

3' - 5' Exonuclease

Yes

Strand Displacement

No

Unit Assay Conditions

1X ThermoPol® Reaction Buffer, 200 µM dNTPs including [3H]-dTTP and 15 nM primed M13 DNA

Error Rate

< 140x10-6bases

Features

  • Ideal for routine, AT- and GC-rich PCR

Application Features

  • High Sensitivity PCR
  • High Throughput PCR
  • Routine PCR
  • GC-rich PCR
  • AT-rich PCR
  • Colony PCR
  • Long PCR (up to ~6 kb genomic)

Product Notes

  1. The OneTaq High GC Enhancer should not be used alone. It should be added only to reactions with the OneTaq GC Reaction Buffer and will typically improve yields when other conditions have failed.
  2. Product specifications for individual components in the OneTaq DNA Polymerase mix are available separately.

References

  1. Barnes, W.M. (1994). Proc. Natl. Acad. Sci. USA. 91, 2216-2220.
  2. Saiki R.K. et al. (1985). Science. 230, 1350-1354.
  3. Powell, L.M. et al. (1987). Cell. 50, 831-840.

Protocols, Manuals & Usage

Protocols

  1. PCR Protocol for OneTaq® DNA Polymerase (M0480)

Usage & Guidelines

Application Notes

Tools & Resources

Selection Charts

Web Tools

FAQs & Troubleshooting

FAQs

  1. What ends will my PCR products have?
  2. How should I determine the appropriate annealing temperature for my reaction?
  3. What should the final primer concentration be in my PCR?
  4. What are the properties of this polymerase (fidelity, product ends, max amplicon, modified base incorporation, etc.)?
  5. What are the stability and storage requirements for NEB's Taq and OneTaq DNA Polymerases?
  6. Can Taq/OneTaq® DNA Polymerases be used for nick translation?
  7. How can I optimize my PCR when using Taq DNA Polymerase?

Troubleshooting

Tech Tips

Did you know most OneTaq reactions amplify more efficiently and robustly when you use a 68°C extension temperature?
