Q800R2 Sonicator
Product informationThe 2nd generation DNA and Chromatin shearing system
The Q800R2 from Qsonica is our 2nd generation DNA and Chromatin shearing system. Improvements include an enhanced user-friendly design and quieter operation. Samples can be sheared to a range of fragment sizes (150bp – 3kb). The system is compatible with commercially available sample tubes and is capable of processing up to 18 samples at one time. Multiple tube rack options can accommodate 50ul - 1ml sample volumes using a variety of standard sample tubes.

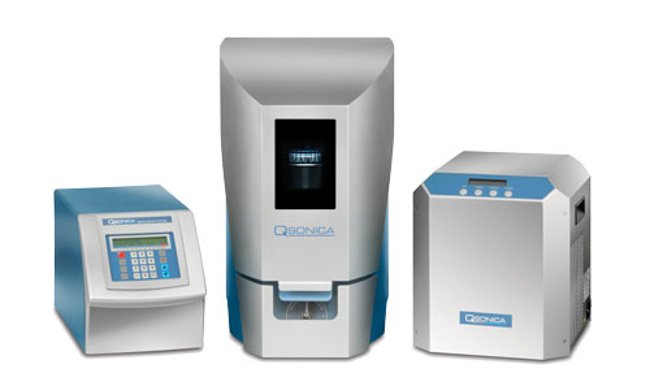

The Q800R2 is a complete package including a chiller to control temperature, digital operating system with programmable memory, high intensity ultrasonics and sound reducing enclosure. Q800R2 Sonicator Accessories.

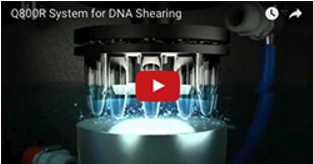

Video about Q800R system for DNA Shearing
Request a quote or demonstration
Features
- High throughput
- Uses standard sample tubes
Applications
- DNA shearing for Next Generation Sequencing(NGS)
- Chromatin shearing
- ChIP
- ChIP-seq
- RNA-seq
- Protein extraction
- Cell Lysis
Protocols and Publications
open Protocols and Publications
Read the Application Note from Illumina
The Qsonica Q800R2 Sonicator offers an alternative method for mechanical DNA fragmentation for Illumina TruSeq Library Preparation Kits.
Specifications
- Power Rating: 750 watts
- Frequency: 20 kHz
- Programmable Timer: 1 second to 10 hours
- Dimensions: 8″ W x 15.25″ L x 8.5″ H
- Voltage: 110V, 50/60Hz
- Generator Dimensions: 8"W x 15.25"L x 8.5"H
- Enclosure Dimensions: 11.5" W x 12.00" L x 20.00" H
- Chiller Dimensions: 13 x 11 x 13
The Q800R includes:
- Generator
- Converter
- Ultrasonic Horn
- Rotation System
- Chiller
- Cables
- Tubing
- 12 x 0.5 ml tube rack
- 2-year warranty
The supporting documents available for this product can be downloaded below.
