Principle / Procedure

The NucleoSpin® gDNA Clean-up XS procedure is the easiest and fastest way to clean up small amounts of pre-purified large-sized DNA and follows a simple bind-wash-elute procedure. The proven silica membrane technology is an effective alternative to the widely used concentrator columns Centricon® for cleaning and concentrating samples, which were extracted by standard “organic” methods. The NucleoSpin® gDNA Clean-up XS Column contains a unique silica membrane and allows smallest elution volumes, resulting in highly concentrated DNA for downstream qPCR quantifications or STR amplifications. Compared to ultrafiltration devices, NucleoSpin® gDNA Clean-up XS reduces sample preparation time (~ 15 min for NucleoSpin® gDNA Clean-up XS vs. > 1 h for centrifugation devices).
In the NucleoSpin® gDNA Clean-up XS procedure DNA binds to the silica membrane in the presence of a  high concentration of chaotropic salt, using Buffer NT. Contaminations are removed in a single wash step with ethanolic buffer. Pure DNA is finally eluted under low ionic strength conditions with slightly alkaline Buffer BE (5 mM Tris/HCl, pH 8.5) or water.

Note: NucleoSpin® DNA Clean-up XS has been renamed and is now available as NucleoSpin® gDNA Clean-up XS

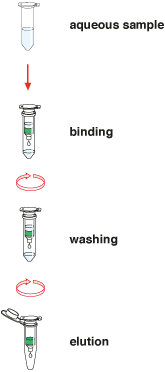

NucleoSpin® gDNA Clean-up XS procedure

Application data

Electropherograms from DNA samples cleaned up with NucleoSpin® gDNA Clean-up XS kit and amplified with the AmpFLSTR® Identifiler® PCR Amplification Kit.
DNA extracted from a laboratory staff buccal swab (A) and a laboratory staff semen stain (B) with concentration / clean-up of the aqueous phase from the organic extraction using the NucleoSpin® gDNA Clean-up XS kit. DNA extracts were used in a standard Identifiler PCR and analyzed on a 3130 CE instrument (Applied Biosystems). “Data Courtesy of California Department of Justice, Bureau of Forensic Services”.

A	B

Trademarks:
AmpFLSTR is a registered trademark of Applied Biosystems
Centricon is a registered trademark of Millipore
Identifiler is a registered trademark of Applied Biosystems



Reference

Forensic Sci Int Genet. 2011 Jun;5(3):226-30. Epub 2010 Apr 15.
The NucleoSpin® DNA Clean-up XS kit for the concentration and purification of genomic DNA extracts: An alternative to microdialysis filtration.
Hudlow WR, Krieger R, Meusel M, Sehhat JC, Timken MD, Buoncristiani MR.
California Department of Justice Jan Bashinski DNA Laboratory, 1001 W. Cutting Blvd., Suite 110, Richmond, CA 94804, USA.

Note: NucleoSpin® DNA Clean-up XS has been renamed and is now available as NucleoSpin® gDNA Clean-up XS
