FrameStar^® PCR plates have a two-component design, which combines the advantages of thin wall polypropylene tubes, for optimum PCR results and a rigid polycarbonate skirt and deck, for highest thermal stability and rigidty. In contrast to standard one-piece PCR plates, evaporation from corner positions and outer rows of wells is minimal, which allows for downscaling of reagent volumes and therefore saves costs. For more information on the Features and Benefits of the FrameStar® range of PCR plates, click here

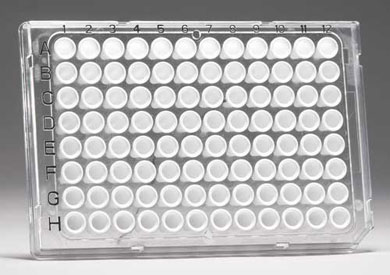

The FrameStar^® 480/96 plates are semi-skirted and the dimensions are designed to achieve optimised assay conditions on the Roche LightCycler® 480, 96well for reaction volumes of 10-100µl. The rigid 2-component design eliminates warping and distortion during PCR, making it ideal for robotic systems. The semi-skirt allows for labelling or barcoding

• Compatible with the Roche LightCycler^® 480
• Recommended for low volume PCR
• Polycarbonate frame for mechanical stability of the plate
• Polypropylene thin-walled tubes for optimum PCR results
• Improved seal integrity due to thermal stability of frame
• Ideal for use with robotic systems

Barcoding

To order your plates with barcodes, simply add /SBC to the end of the ordering code for Standard Single Barcoding, /DBC for Standard Double Barcoding, /TBC for Standard Triple Barcoding, or /QBC for Standard Quadruple Barcoding (see Barcoding for more details).

Please be aware the barcoding products have a minimum order quantity of 10 boxes with 50 plates.

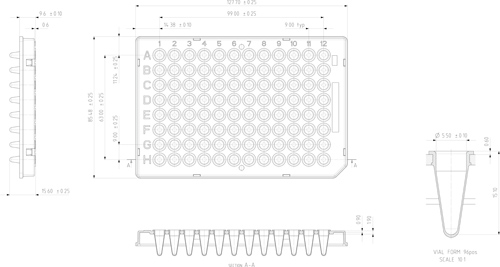

Technical Specifications

Click here for more information about the FrameStar range

_{FrameStar® is covered by one or more of the following US patents or their foreign counterparts, owned by Eppendorf AG: US Patent Nos. 7,347, 977 and 6,340,589. FrameStar® is a registeredtrademark owned by 4titude®Ltd}
