Vari-Plates & Vari-Strips
Product informationBenefits
• Use as individual strips or in a frame, for easier handling
• Low profile
• Barcoding of frames possible
• Polypropylene thin-walled tubes for optimum PCR results
• Suitable for cap sealing
• RNase, DNase, Human Genomic DNA Free
| Code | Name | Size | Quantity | Price | |
|---|---|---|---|---|---|
4TI-0950W-F |
96 Well Semi-Skirted PCR Plate for Removable 8 Well Strips, Roche style, white PC frame, low profile, cut corner H12, 10 frames per case |
10 units | - | Unavailable in your region | |
4TI-0753 |
8 Well PCR Tube Strips, white PP wells, low profile, 120 tube strips per case |
120 tube strips | - | Unavailable in your region | |
4TI-0753/C |
8 Well PCR Tube Strips, clear PP, low profile, 120 tube strips per case |
120 tube strips | - | Unavailable in your region | |
4TI-0754 |
8 Well PCR Tube Strips, white PP, low profile, plus cap strips, 4ti-0753 plus 4ti-0751 combi pack, 120 tube strips and cap strips per case |
120 tube strips + 120 cap strips | - | Unavailable in your region | |
4TI-0754/C |
8 Well PCR Tube Strips, clear PP, low profile, plus cap strips, 4ti-0753 plus 4ti-0751 combi pack, 120 tube strips and cap strips per case |
120 tube strips + 120 cap strips | - | Unavailable in your region | |
4TI-0753/757 |
96 Well Skirted PCR Plate with Removable 8 Well Strips, white PP wells, white PC frame, low profile, 50 plates per case |
50 plates | - | Unavailable in your region | |
4TI-0753/C/757 |
96 Well Skirted PCR Plate with Removable 8 Well Strips, clear PP wells, white PC frame, low profile, 50 plates per case |
50 plates | - | Unavailable in your region | |
4TI-0753/950W |
96 Well Skirted PCR Plate with Removable 8 Well Strips, Roche style, white PP wells, white PC frame, low profile, 50 plates per case |
50 plates | - | Unavailable in your region |

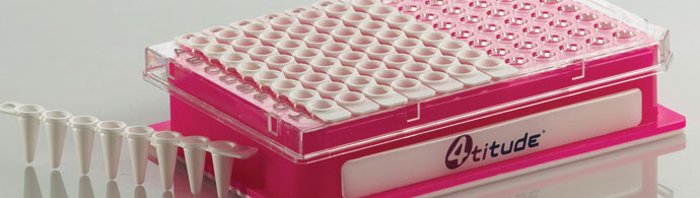

Vari-Plate™ Frames & Vari-Plates™
Rigid polycarbonate frame, for use with Vari-Strips; available for use on Roche LightCycler® 480 and for universal use.
These Vari-Plate™ frames are moulded from rigid polycarbonate for use with our polypropylene Vari-Strips™.
The Vari-Strips™ are inserted into the Vari-Plate™ frames to form a complete plate, part plate, or individual strip with an easy-to-handle frame.
As the Vari-Strips™ are interchangeable with the Vari-Plate™ frames, the frames themselves are re-useable; simply purchase more Vari-Strips™ to use.
Vari-Plate™ frames can be purchased separately, or pre-loaded with Vari-Strips™.
Features
- Rigid polycarbonate frames, which reduce thermal expansion and sample evaporation during PCR, leading to improved consistenc in PCR results
- 2 types of frame available - a 96 Well Semi-Skirted Frame, Roche Style for use with the Roche LightCycler® 480, and a 96 Well Skirted Frame for universal use
- Frames can be purchased on their own or pre-loaded with Vari-Strips™
- Vari-Strips™ have ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
- Vari-Strips™ have a low profile 0.1 ml (100 µl) working volume, with a 0.2 ml (200 µl) total well capacity when used with sealing options
- Raised well rims prevent cross contamination and facilitate effective sealing for reduced evaporation
- Vari-Strips™ are available with clear or white well tubes - white well tubes giving the highest sensitivity and consistency for fluorescent detection during qPCR
- Compatible with standard multichannel pipettes
- Frames available barcoded
Barcoding
This plate is available with linear Code 128-format barcodes to aid identification and traceability for your samples. To order your plates with barcodes, simply add /SBC to the end of the ordering code for Standard Single Barcoding, /DBC for Standard Double Barcoding, /TBC for Standard Triple Barcoding, or /QBC for Standard Quadruple Barcoding (see Barcoding for more details).
Please be aware the barcoding products have a minimum order quantity of 10 boxes.
Technical Specifications

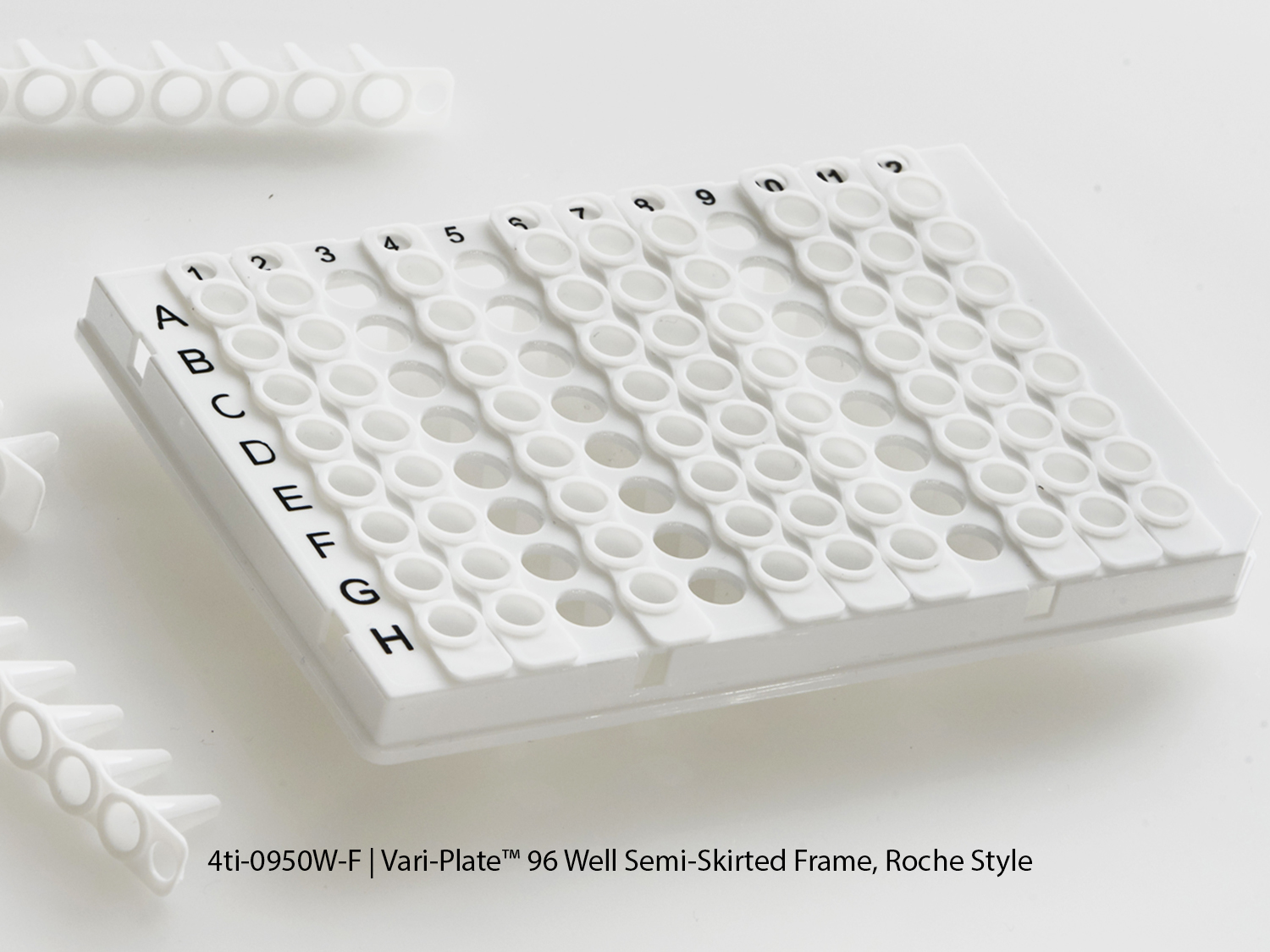

4ti-0950W-F Vari-Plate™ 96 Well Semi-Skirted Frame, Roche Style:
|
Plate Width |
127.70 ± 0.25 mm |
|
Plate Depth |
85.48 ± 0.25 mm |
|
Plate Height |
15.60 ± 0.25 mm |
|
Well Depth |
15.10 ± 0.10 mm |
|
Well Diameter |
5.50 ± 0.10 mm |
|
Distance to centre of A1 from top edge |
11.24 ± 0.25 mm |
|
Distance to centre of A1 from left edge |
14.38 ± 0.25 mm |
|
Pitch (distance between A1 and A2) |
9.00 mm |

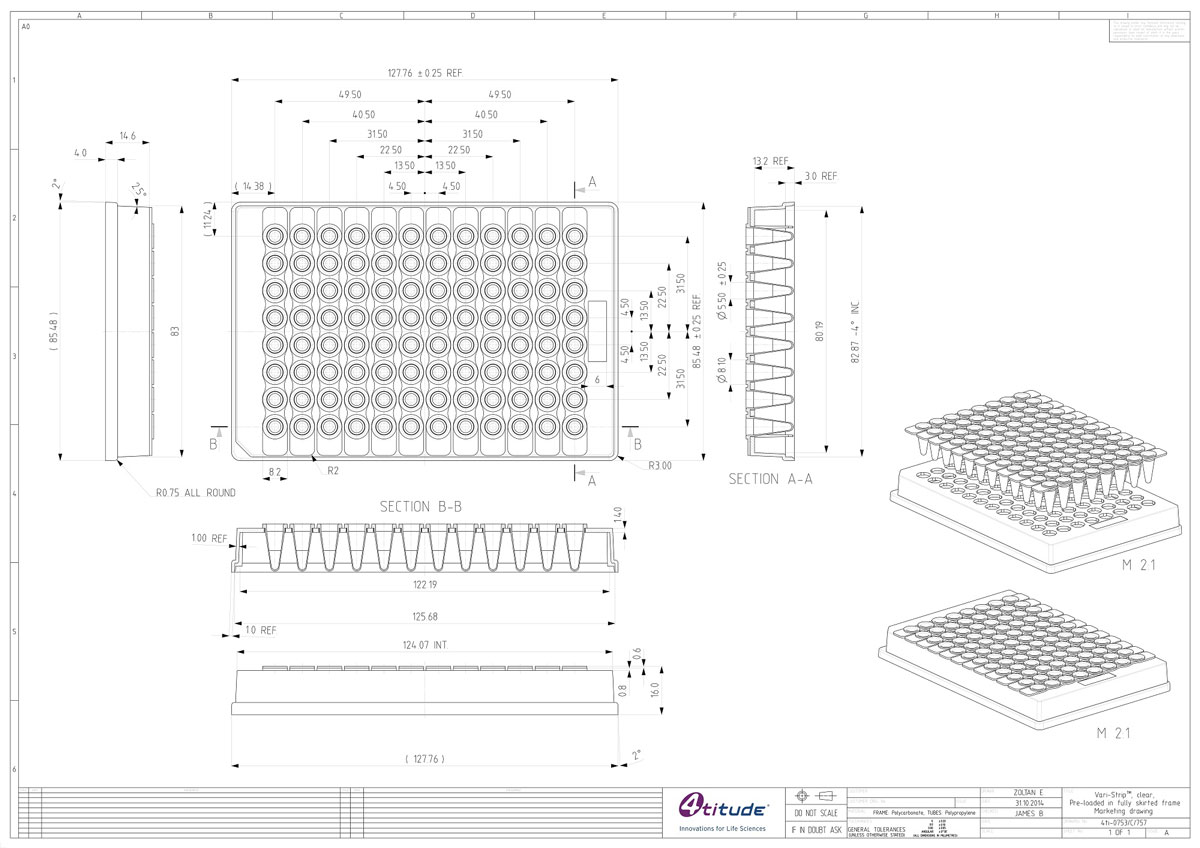

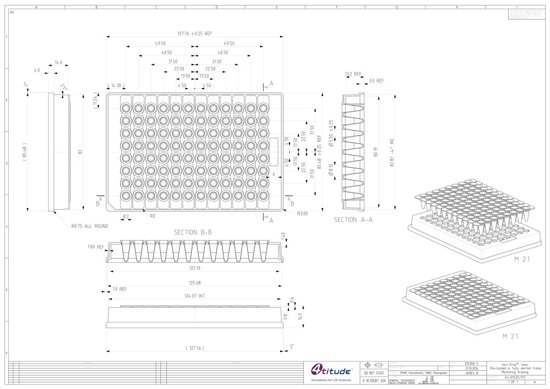

4ti-0757-F Vari-Plate™ 96 Well Skirted Frame:
|
Plate Width |
127.76 ± 0.25 mm |
|
Plate Depth |
85.48 ± 0.25 mm |
|
Plate Height |
16.10 ± 0.25 mm |
|
Well Depth |
15.10 ± 0.10 mm |
|
Well Diameter |
5.50 ± 0.10 mm |
|
Distance to centre of A1 from top edge |
11.24 ± 0.25 mm |
|
Distance to centre of A1 from left edge |
14.38 ± 0.25 mm |
|
Pitch (distance between A1 and A2) |
9.00 mm |
This short video shows off the shelf solutions for manufacturing diagnostics kits, using our Vari-Plates™ range and InterSeal from the manufacturer to the point of diagnostics use.
The supporting documents available for this product can be downloaded below.
