FrameStar 96 Well PCR Plates - semi skirted - with upstand
Product informationBenefits
-
2-component design
-
Low volume PCR
-
Ideal for heat sealing
-
Alphanumeric grid reference
-
SBS footprint (pre- and post-PCR)
-
Certified free from RNase, DNase, Bacterial & human genomic DNA
-
Clean-room produced
Code | Name | Size | Quantity | Price | |
---|---|---|---|---|---|
4TI-0730/C/10P |
FrameStar 96 Well Semi-Skirted PCR Plate, ABI style, clear PP wells, clear PC frame, with upstand, high profile, cut corner A12, 10 plates per case |
10 plates | - | Unavailable in your region | |
4TI-0730/C |
FrameStar 96 Well Semi-Skirted PCR Plate, ABI style, clear PP wells, clear PC frame, with upstand, high profile, cut corner A12, 50 plates per case |
50 plates | - | Unavailable in your region | |
4TI-0730/B |
FrameStar 96 Well Semi-Skirted PCR Plate, ABI style, clear PP wells, blue PC frame, with upstand, high profile, cut corner A12, 50 plates per case |
50 plates | - | Unavailable in your region | |
4TI-0730/G |
FrameStar 96 Well Semi-Skirted PCR Plate, ABI style, clear PP wells, green PC frame, with upstand, high profile, cut corner A12, 50 plates per case |
50 plates | - | Unavailable in your region | |
4TI-0730/R |
FrameStar 96 Well Semi-Skirted PCR Plate, ABI style, clear PP wells, red PC frame, with upstand, high profile, cut corner A12, 50 plates per case |
50 plates | - | Unavailable in your region | |
4TI-0730/X |
FrameStar 96 Well Semi-Skirted PCR Plate, ABI style, clear PP wells, black PC frame, with upstand, high profile, cut corner A12, 50 plates per case |
50 plates | - | Unavailable in your region | |
4TI-0730 |
FrameStar 96 Well Semi-Skirted PCR Plate, ABI style, clear PP wells, purple PC frame, with upstand, high profile, cut corner A12, 50 plates per case |
50 plates | - | Unavailable in your region | |
4TI-0730/C-SBC |
FrameStar 96 Well Semi-Skirted PCR Plate, ABI style, clear PP wells, clear PC frame, with upstand, high profile, cut corner A12, 50 plates per case, standard barcode |
50 plates | - | Unavailable in your region | |
4TI-0730/C-CSBC |
FrameStar 96 Well Semi-Skirted PCR Plate, ABI style, clear PP wells, clear PC frame, with upstand, high profile, cut corner A12, 50 plates per case, custom barcode |
50 plates | - | Unavailable in your region | |
4TI-0730/G-SBC |
FrameStar 96 Well Semi-Skirted PCR Plate, ABI style, clear PP wells, green PC frame, with upstand, high profile, cut corner A12, 50 plates per case, standard barcode |
50 plates | - | Unavailable in your region | |
4TI-0730/G-CSBC |
FrameStar 96 Well Semi-Skirted PCR Plate, ABI style, clear PP wells, green PC frame, with upstand, high profile, cut corner A12, 50 plates per case, custom barcode |
50 plates | - | Unavailable in your region | |
4TI-0730/R-CSBC |
FrameStar 96 Well Semi-Skirted PCR Plate, ABI style, clear PP wells, red PC frame, with upstand, high profile, cut corner A12, 50 plates per case, custom barcode |
50 plates | - | Unavailable in your region | |
4TI-0730-CSBC |
FrameStar 96 Well Semi-Skirted PCR Plate, ABI style, clear PP wells, purple PC frame, with upstand, high profile, cut corner A12, 50 plates per case, custom barcode |
50 plates | - | Unavailable in your region | |
4TI-0730-SBC |
FrameStar 96 Well Semi-Skirted PCR Plate, ABI style, clear PP wells, purple PC frame, with upstand, high profile, cut corner A12, 50 plates per case, standard barcode |
50 plates | - | Unavailable in your region | |
4TI-0730/R-SBC |
FrameStar 96 Well Semi-Skirted PCR Plate, ABI style, clear PP wells, red PC frame, with upstand, high profile, cut corner A12, 50 plates per case, standard barcode |
50 plates | - | Unavailable in your region | |
4TI-0730/B-SBC |
FrameStar 96 Well Semi-Skirted PCR Plate, ABI style, clear PP wells, blue PC frame, with upstand, high profile, cut corner A12, 50 plates per case, standard barcode |
50 plates | - | Unavailable in your region | |
4TI-0730/C/0565 |
FrameStar 96 Well Semi-Skirted PCR Plate, ABI style, clear PP wells, clear PC frame, with upstand, high profile, cut corner A12, 50 plates per case plus 4ti-0565 |
50 plates & 50 seals | - | Unavailable in your region | |
4TI-0730/G-CDBC |
FrameStar 96 Well Semi-Skirted PCR Plate, ABI style, clear PP wells, green PC frame, with upstand, high profile, cut corner A12, 50 plates per case, custom double barcode |
50 plates | - | Unavailable in your region |

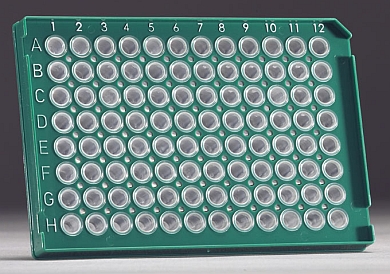

FrameStar® PCR plates have a two-component design, which combines the advantages of thin wall polypropylene tubes, for optimum PCR results and a rigid polycarbonate skirt and deck, for highest thermal stability and rigidty. In contrast to standard one-piece PCR plates, evaporation from corner positions and outer rows of wells is minimal, which allows for downscaling of reagent volumes and therefore saves costs. For more information on the Features and Benefits of the FrameStar® range of PCR plates, click here
This semi-skirted plate is recommended for ABi thermal cyclers and sequencers; it can be used directly with the ABi instruments with no adapters necessary. The rigid 2-component design eliminates warping and distortion during PCR making it ideal for use with robotic systems. The semi-skirt allows for labelling or barcoding.
- Ideal for ABi thermal cyclers & sequencers
- Recommended for low volume PCR
- Polycarbonate frame for mechanical stability of the plate
- Polypropylene thin-walled tubes for optimum PCR results
- Improved seal integrity due to thermal stability of frame
- Ideal for use with robotic systems
- 6 colour options
- Black frame with white wells option for fluorescent based technique
Barcoding
To order your plates with barcodes, simply add /SBC to the end of the ordering code for Standard Single Barcoding, /DBC for Standard Double Barcoding, /TBC for Standard Triple Barcoding, or /QBC for Standard Quadruple Barcoding (see Barcoding for more details).
Please be aware the barcoding products have a minimum order quantity of 10 boxes.

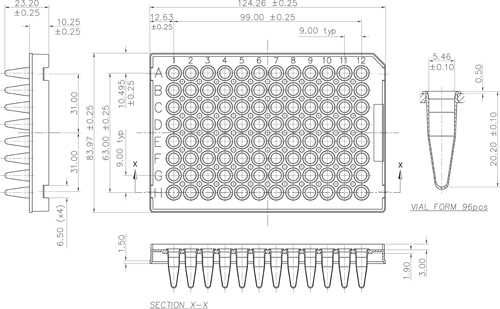

Technical specifications
Click here for more information about the FrameStar Range
FrameStar® is covered by one or more of the following US patents or their foreign counterparts, owned by Eppendorf AG: US Patent Nos. 7,347, 977 and 6,340,589. FrameStar® is a registered trademark owned by 4titude®Ltd.
