Principle

Ultra-clear based imaging microplate

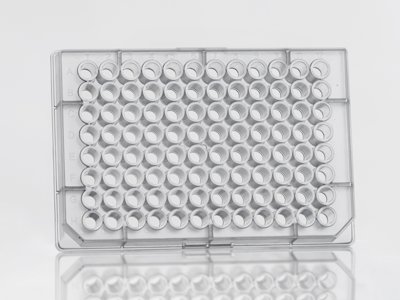

The main advantage of using UltraVision™ Plates is in the optically ultra-clear base of the plate, which gives superior results by delivering low absorbance and high transmission, together with low background signals.

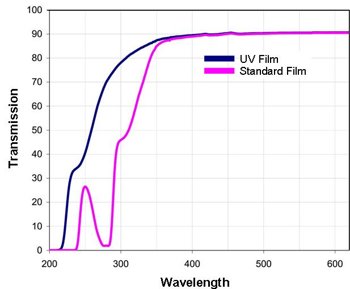

Not only this, but due to its incredible optical clarity, the ultra-clear base of the UltraVision™ Plate delivers improved transmission of signals at low wavelengths compared to standard optical films (see graph below). It allows DNA measurements at 260/280 nm wavelengths in a medium or high throughput.

There are a number of sealing options available to this plate, depending on the application and desired outcome.

• adhesive sealing
• Heat seal

Features

• Ultra-clear base improves transmission for low wavelengths
• Optimum signal-to-noise ratios
• Alphanumeric grid reference
• Lid available
• Suitable for adhesive and heat sealing
• Free from DNase, RNase and human genomic DNA

Barcoding

These plates are available with linear Code 128-format barcodes to aid identification and traceability for your samples. To order your plates with barcodes, simply add /SBC to the end of the ordering code for Standard Single Barcoding, /DBC for Standard Double Barcoding, /TBC for Standard Triple Barcoding, or /QBC for Standard Quadruple Barcoding (see Barcoding for more details).

Please be aware this product has a minimum order quantity of 10.
