Color Prestained Protein Standard, Broad Range (10-250 kDa)

Product Introduction

The Color Prestained Protein Standard, Broad Range is a mixture of highly pure, recombinant, prestained proteins, covalently coupled with a blue chromophore, and two reference bands (one orange and one green at 72 kDa and 26 kDa, respectively), that resolves into 11 sharp bands when electrophoresed.
  • Allows approximate molecular weight determination when performing SDS-PAGE analysis.
  • Applications include verification of Western transfer efficiency on membranes and fluorescent imaging of SDS-PAGE.
  • Direct loading, additional loading buffer and heat incubation not required
  • Recombinant proteins with no detectable protease contaminating activities
  • Optimal stability for up to 24 months





Catalog # Size Concentration
P7719S 150.0 gel lanes
P7719L 750.0 gel lanes

Product Information

Description

The Color Prestained Protein Standard, Broad Range is a mixture of highly pure, recombinant, prestained proteins, covalently coupled with a blue chromophore, and two reference bands (one orange and one green at 72 kDa and 26 kDa, respectively), that resolves into 11 sharp bands when electrophoresed. The Color Prestained Protein Standard is designed for observing protein separation during SDS-PAGE, verification of western transfer efficiency on membranes, and for approximating the size of proteins (1-2). The Color Prestained Protein Standard may also be used in fluorescent imaging of SDS-PAGE.

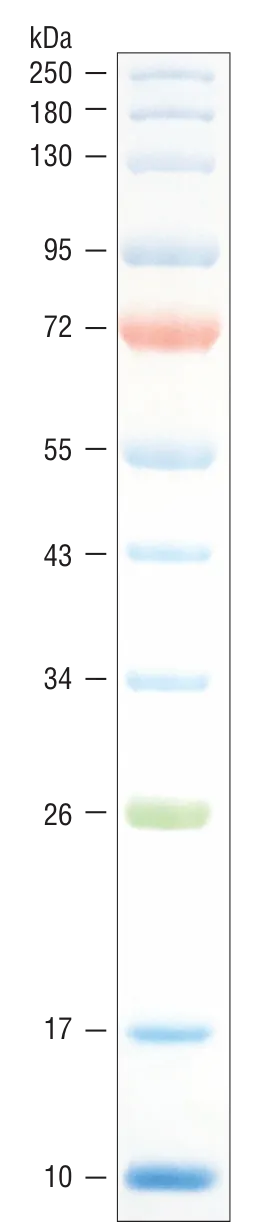

Color Prestained Protein Standard, Broad Range (10–250 kDa) 10–20% Tris-glycine SDS-PAGE Gel


This product is related to the following categories:
Protein Standards Products,
Markers & Ladders Products,
Protein Standards Products,
This product can be used in the following applications:
Protein Standards,
Protein Analysis Tools

Reagents Supplied

Reagents Supplied

The following reagents are supplied with this product:

NEB # Component Name Component # Stored at (°C) Amount Concentration
  • P7719S     -20
      Color Prestained Protein Standard, Broad Range (10-250 kDa) P7719SVIAL -20 1 x 150 gel lanes Not Applicable
  • P7719L     -20
      Color Prestained Protein Standard, Broad Range (10-250 kDa) P7719SVIAL -20 5 x 150 gel lanes Not Applicable

Properties & Usage

Storage Buffer

62.5 mM Tris-phosphate
1 mM EDTA
2% SDS
10 mM DTT
1 mM NaN3
33% Glycerol
pH 7.5 @ -20°C

Features

  • Direct loading, additional loading buffer and heat incubation not required
  • Applications include verification of western blot transfer efficiency on membranes and fluorescent imaging of SDS-PAGE

Product Notes

  1. To ensure uniform mobility, load an equal volume of 1X Reducing SDS Loading Buffer into any unused wells.
  2. To maximize shelf life, store at -20°C. Guaranteed stable for 2 years when properly stored.
  3. It is not necessary to pre-heat the unstained protein standard prior to loading on a gel.
  4. Recommended mini-gel load: 3 μl.
  5. Apparent molecular weight values for prestained proteins can be different when run on different gel types and percentages.

References

  1. Laemmli, UK (1970). Nature. 227, 680.
  2. Sambrook, J., Fitsch, EF. and Maniatis, T. (2001). Molecular Cloning: A Laboratory Manual. (3rd ed.). Cold Spring Harbor: Cold Spring Harbor Laboratory Press.

Protocols, Manuals & Usage

Protocols

  1. Protocol for Using the Color Prestained Protein Standard, Broad Range (10-250 kDa) (NEB #P7719) for an SDS-PAGE Mini Gel

FAQs & Troubleshooting

FAQs

  1. How does the new Color Prestained Protein Standard, Broad Range differ from NEB’s previous Color Prestained Protein Standard?
  2. What is the protein concentration of the proteins used in the Color Prestained Protein Standard, Broad Range?
  3. I accidentally left my Protein Standard out at room temperature for a number of days. Is it still okay to use?
  4. I notice that the molecular weights I am observing are slightly different than those reported. Can you explain?
  5. What volume is supplied in a small pack and a large pack of NEB’s Protein Standards?

Quality, Safety & Legal

Quality Assurance Statement

Quality Control tests are performed on each new lot of NEB product to meet the specifications designated for it. Specifications and individual lot data from the tests that are performed for this particular product can be found and downloaded on the Product Specification Sheet, Certificate of Analysis, data card or product manual. Further information regarding NEB product quality can be found here.

Specifications

The Specification sheet is a document that includes the storage temperature, shelf life and the specifications designated for the product. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]

Certificate Of Analysis

The Certificate of Analysis (COA) is a signed document that includes the storage temperature, expiration date and quality controls for an individual lot. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]_[Lot Number]

Safety DataSheets

The following is a list of Safety Data Sheet (SDS) that apply to this product to help you use it safely.

Legal and Disclaimers

Products and content are covered by one or more patents, trademarks and/or copyrights owned or controlled by New England Biolabs, Inc (NEB). The use of trademark symbols does not necessarily indicate that the name is trademarked in the country where it is being read; it indicates where the content was originally developed. The use of this product may require the buyer to obtain additional third-party intellectual property rights for certain applications. For more information, please email busdev@neb.com.

This product is intended for research purposes only. This product is not intended to be used for therapeutic or diagnostic purposes in humans or animals.
