Labcycler Pro Basic
Product information| Code | Name | Size | Quantity | Price | |
|---|---|---|---|---|---|
015-103 |
Labcycler Pro Basic |
1 pc | - | Unavailable in your region |
Labcycler Pro Basic

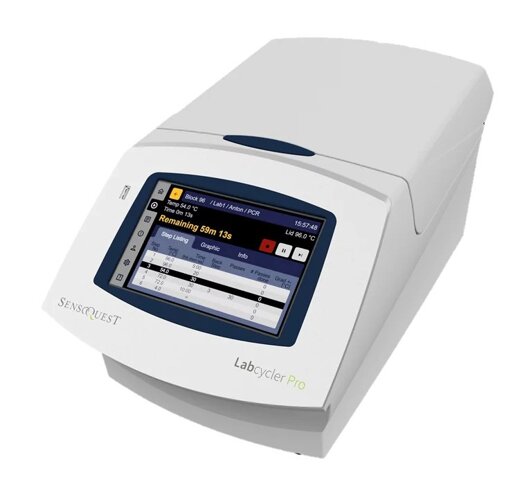

The Labcycler Pro Basic (015-103) is a newly developed high-quality thermocycler equipped with a completely renewed user network-interface. The large 7-inch multi-touch screen with its 1280 x 800 pixels is extremely high-resolution and supports the user optimally with its excellent font and detailed graphics. In addition to the tabular listing, programming can now also be done with the help of a highly intuitive graphical user interface.
The internal storage of programs and protocols is practically unlimited with the 1GB memory. Therefore, the complete history of a program is stored, so that the user can undo changes as often as he wants. In addition, the reports include the complete temperature curve of the program sequence. USB high-speed is supported for data backup or program transfer. This allows you to use a USB stick to import and export programs and reports, or to start programs directly from the USB stick.
The Labcycler Pro has a GBit Ethernet interface and Wi-Fi. This makes it possible to access programs of other lab cyclists in a local network, edit them and start them.
Optionally, the devices can be controlled and monitored from a PC as well as from mobile devices. Of course, our app notifies the user on the go when a program has been completed and the samples are ready to be taken. They can optionally use a central location in the cloud for their programs and protocols.
The Labcycler Pro is equipped with a block change system. With just one handle, the user can use a 48 (012-102), 96 (012-103 silver /012-108 aluminum), 384 (012-101), Triple Block (012-104) or In situ Block (012-107).
The network functionality will be submitted with a software update at a later date. Software updates can now be loaded conveniently via a USB stick, or obtained directly from the Internet. The Labcycler Pro Gradient (015-101) has a gradient function. His brother Labcycler Basic (015-103) does not have this
| Line voltage | 85 V to 265 V, 50 to 60 Hz |
| Power consumption | Maximum 350 W, standby 25 W |
| Noise | Idle 38 dBA, typical 44 dBA, maximum 48 dBA |
| Display | 7″ diagonale, 1280 x 800 pixel, 16.7 M colors, IPS-technology, capacitive multi-touch |
| Heated Lid | Programmable: Pressure 0 to 120 N, temperature RT up to 110 °C |
| Dimension | Length: 44 cm; width: 25 cm; height: 20 cm |
| Weight | 11.2 kg |
| Keyboard | Virtual keys |
| Languages | English, German, Spanish |
| Memory space | 1 GB, more than 10.000 programs |
| Password protection | Configurable up to 64 users |
| Administration | Administrator rights: Reading & writing |
| Copy function | With Labcycler Basic, Labcycler Gradient, Labcycler Pro Basic & Labcycler Pro Gradient |
| USB | 2.0 |
| Ethernet | 100 MB |
| Programs | With History |
| Programable | Graphical or tabular form |
| Gradient | Upgradeable |
| Temperature | Minus 5.0 °C to 99.9 °C |
| Ramp rate | 0.001 °C/s – 5.0 °C/s |
| Homogeneity | ± 0.25 °C @ 55 °C, ± 0.4 °C @ 95 °C |
| De(In)crements | Time: ± 99.99 s, temperature: ± 9.99 °C |
| Instant incubation | Yes, e.g. at 0.0 °C, 26 °C, 37 °C, and so on |
