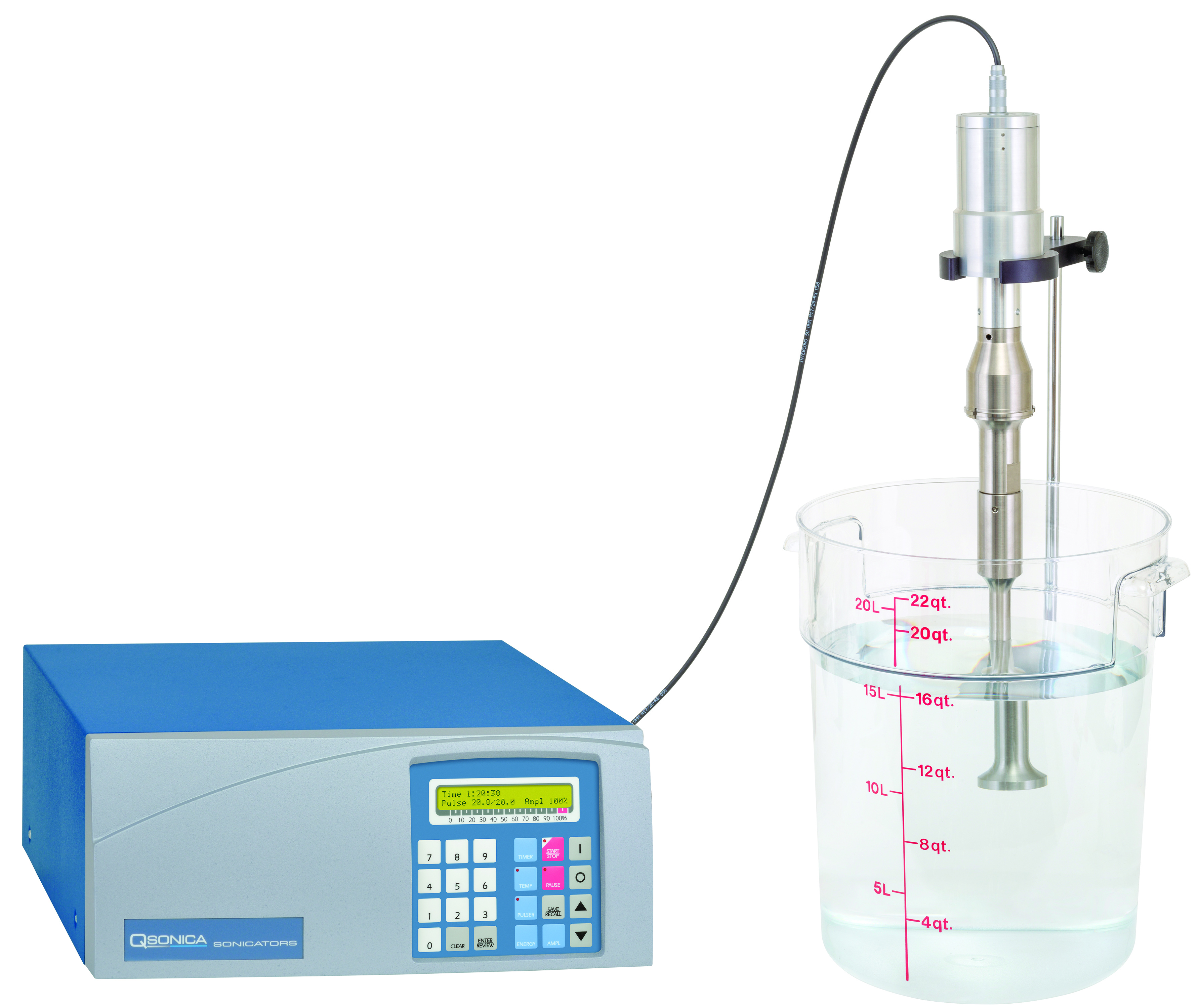

Overview: Q2000 Sonicator High Powered Industrial System
Product informationCode | Name | Size | Quantity | Price | |
---|---|---|---|---|---|
Q2000 |
2000 watt Sonicator system, 220V |
1 system | - | Unavailable in your region | |
Q2000F |
2000 watt Sonicator system w/ flocell |
1 pcs | - | Unavailable in your region |
Demo / Quote Request Protocol & Publications Accessories Technical Support
Description
The Q2000 offers the ability to process industrial-scale sample volumes in individual batches or flow-through applications. This system is recommended for processing volumes of 5L or larger. Routine applications include emulsification, cell lysis, degassing, homogenization, solubilizing, deagglomerating and dispersing.
This model is available with a 100um amplitude, 1.5 inch diameter, 10 inch long probe for batch volumes or a flocell accessory for inline processing. A booster is included with the Q2000. The booster increases the amplitude of the probe which enables larger volumes to be processed.
The Q2000 Sonicator allows the user to program processing times and a full range of intensity settings. Processing time can be set from 1 second to 10 hours. A pulsing feature is standard. Pulsing can reduce the amount of heat generated by sonication when processing temperature sensitive samples. A temperature monitoring probe option is also available.
Features
Programmable operation |
Set time and amplitude for hands free operation |
Pulse mode |
Prevent heat buildup in temperature sensitive samples |
Digital amplitude / intensity control |
Output intensity can be set from 20-100% |
Elapsed time indicator |
Displays duration of sonication |
Display of wattage and joules |
Real-time energy monitoring |
Overload protection |
Prevents damage to circuitry if a fault occurs |
Temperature monitoring |
Optional temperature prob |
Technical Specifications
Power Rating |
2,000 watts |
Frequency |
20 kHz |
Programmable Timer |
10 hours |
Adjustable Pulse On/Off |
1 second to 1 minute |
Dimensions (H x W x D) |
7 x 15 x 18.25 in. (178 x 380 x 463 mm) |
Voltage |
220V, 50/60 Hz |
The Q2000 requires a fused, single phase 3-terminal grounding type electrical outlet capable of supplying 50/60 Hz at 220 volts, or 240 volts.
Ordering information
Part # Q2000 includes a standard 1.5” diameter probe (#4677).
Part # Q2000F includes Flocell with 1.5” diameter probe (#4676).
Please note: the stand (#461) is sold separately.
