Product Class: Other

m7G(5')ppp(5')G RNA Cap Structure Analog

Product Introduction



  • The 5´terminal m7G cap present on most eukaryotic mRNAs promotes translation in vitro at the initiation level (1,2,3).
  • A method for efficient in vitro synthesis of capped RNA using E.coli RNA polymerase primed with m7G(5´ )ppp(5´ )G (#S1404S) or m7G(5´ )ppp(5´ )A (#S1405S) has been developed by Contreas et al. (7).
Catalog # Size Concentration
S1404S 1.0 µmol
S1404L 5.0 µmol

Featured Videos

View Video Library
  • RNase_Contamination_Anim_720x405

    Avoiding RNase Contamination

Product Information

Description

For most RNAs, elimination of the cap structure causes a loss of stability, especially against exonuclease degradation (4), and a decrease in the formation of the initiation complex of mRNAs for protein synthesis (4,5). Certain prokaryotic mRNAs containing a 5´ terminal cap structure are translated as efficiently as or more efficiently than eukaryotic mRNAs in a eukaryotic cell-free protein synthesizing system (5). Also a cap requirement has been observed for splicing eukaryotic substrate RNAs (6).



Sequence

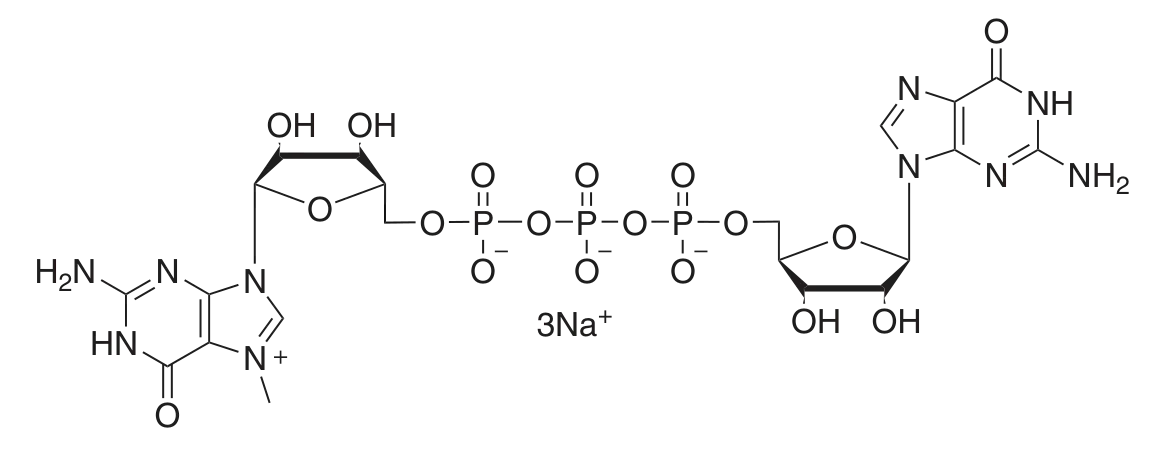

7mG(5´)ppp(5´)G
This product is related to the following categories:

Reagents Supplied

Reagents Supplied

The following reagents are supplied with this product:

NEB # Component Name Component # Stored at (°C) Amount Concentration

Properties & Usage

Supplied As

Dried Sodium Salt

Suggested Working Concentration

10mM

Recommended Resuspension Volume

100 μl

Product Notes

  1. Addition of 100 µl of water gives approximately a 10 mM solution.

References

  1. Shatkin, A.J. (1978). Cell. 9, 645-653.
  2. Fillipowicz, W. (1978). FEBS Lett.. 96, 1-11.
  3. Banerjee, A.K. (1980). Microbiol. Rev.. 44, 175-205.
  4. Miura, K. (1981). Adv. Biophys.. 14, 205-238.
  5. Shatkin, A.J. et al. (1977). Nucl. Acids Res.. 4, 3065-3081.
  6. Konarska, M.M. et al. (1984). Cell. 38, 731-736.
  7. Contreas, R. et al. (1982). Nucl. Acids Res.. 10, 6353-2363.
  8. Paterson, B.M. and Rosenberg, M. (1979). Nature. 279, 696-701.
