FrameStar^® PCR plates have a two-component design, which combines the advantages of thin wall polypropylene tubes, for optimum PCR results and a rigid polycarbonate skirt and deck, for highest thermal stability and rigidty. In contrast to standard one-piece PCR plates, evaporation from corner positions and outer rows of wells is minimal, which allows for downscaling of reagent volumes and therefore saves costs. For more information on the Features and Benefits of the FrameStar^® range of PCR plates, click here

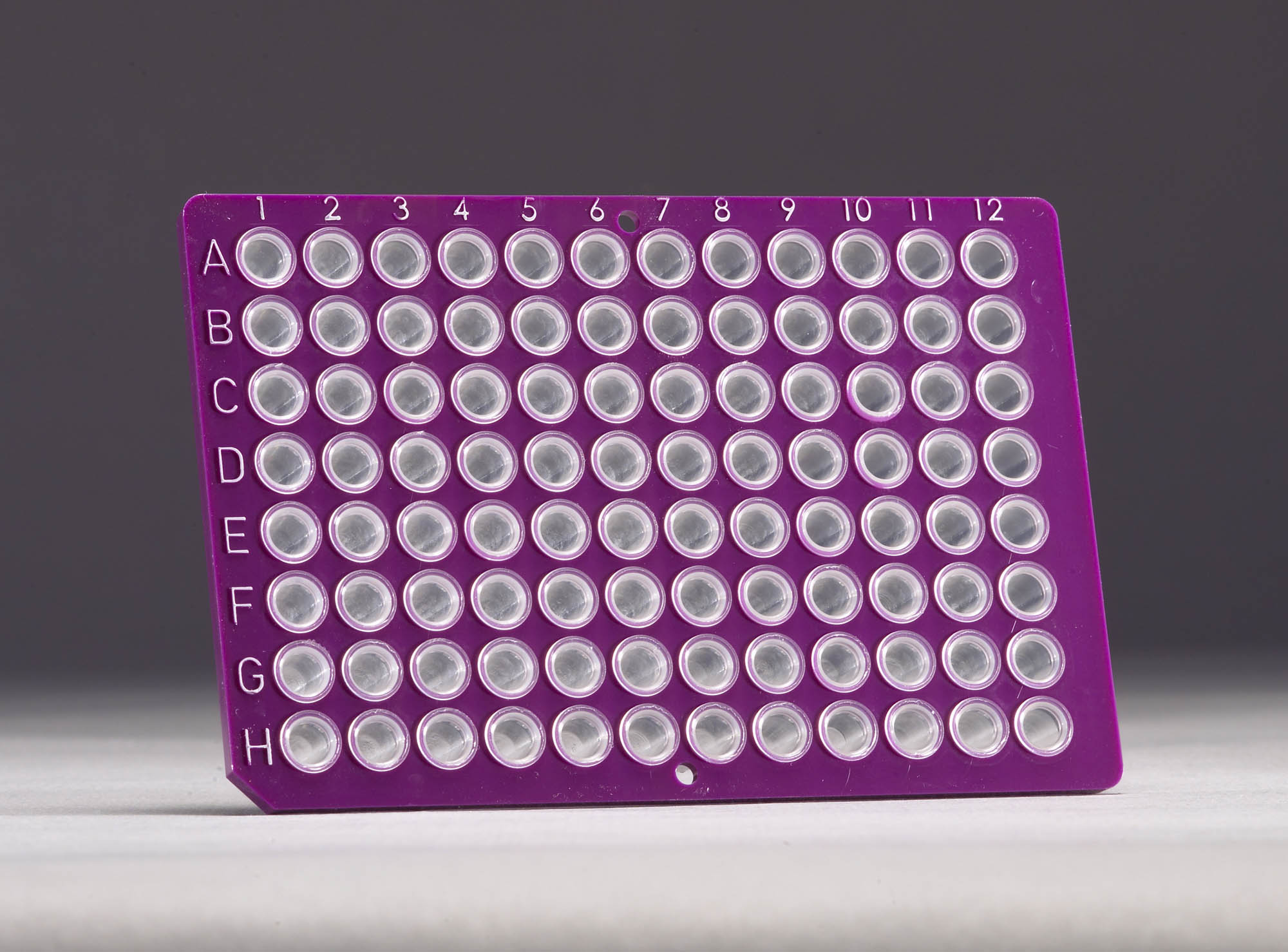

This low-profile PCR plate has shorter wells than the standard profile plate (4ti-0710), decreasing the "dead space" between the heated lid of the thermal cycler and the sample. This eliminates condensation on the side wall of the tube, preventing reduction in PCR volume and increasing the efficiency of the reaction. Low profile products are especially recommended for use with reaction volumes below 20µl. The polycarbonate frame, within the 2-component design, reduces thermal expansion during PCR, ensuring the seal integrity remains intact, even at elevated temperatures.

• Low profile
• Recommended for low volume PCR
• Polycarbonate frame for mechanical stability of the plate
• Polypropylene thin-walled tubes for optimum PCR results
• Improved seal integrity due to thermal stability of frame
• Ideal for use with robotic systems

Barcoding

To order your plates with barcodes, add /SBC to the ordering code for Standard Single Barcoding or /DBC for Standard Double Barcoding. (See Barcoding for more details)

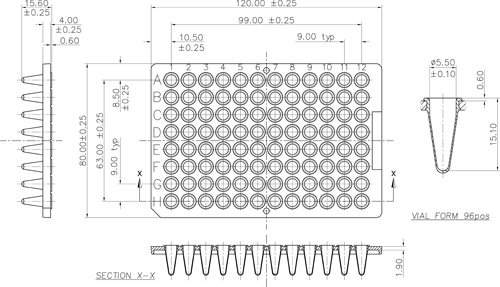

Technical Specifications

Click here for more information about the FrameStar range

FrameStar® is covered by one or more of the following US patents or their foreign counterparts, owned by Eppendorf AG: US Patent Nos. 7,347, 977 and 6,340,589. FrameStar® is a registered trademark owned by 4titude®Ltd.
