Description

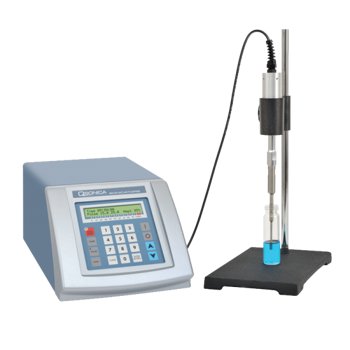

The Q125 is a microprocessor based, programmable ultrasonic processor. Features include pulse mode and a digital display of both wattage and joules.

The unit is effective for standard cell disruption, DNA/RNA shearing, homogenization and many other applications. The Q125 is ideal for small samples and for customers that do not plan to scale up to larger volumes in the future. This model offers the same programming and display features as the Q500 unit.

Part #Q125 includes a standard 1/8” diameter probe (#4422). A variety of probe/horn options are available and the system can be purchased without the standard probe by selecting #Q125A.

Please note: the stand is sold separately.



Features

Programmable operation
Set time and amplitude for hands free operation

Pulse mode
Prevent heat buildup in temperature sensitive samples

Digital amplitude / intensity control
Output intensity can be set from 20-100%

Elapsed time indicator
Displays duration of sonication

Display of wattage and joules
Real-time energy monitoring

Overload protection
Prevents damage to circuitry if a fault occurs

RoHS compliant
Uses lead free components

Compact design
Takes up less space than competitive units

PART NO. Q125 INCLUDES:

• Generator
• Converter
• 1/8” diameter probe
• Power cable
• Converter cable
• Wrench set
• 2-year warranty



Applications

• DNA shearing
• Chromatin shearing
• ChIP
• ChIP-seq
• Protein extraction
• Cell Lysis
• Homogenization



Specifications

• Power Rating: 125 watts
• Frequency: 20 kHz
• Programmable Timer: 10 hours
• Adjustable Pulse On/Off: 1 second to 1 minute
• Dimensions: 8″ W x 13.75″ L x 5.75″ H
• Voltage: 110V, 50/60Hz
