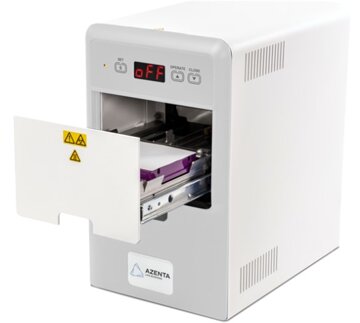

Semi-automatic sheet heat sealer compatible with a wide range of seals and microplates, PCR and assay plates, as well as storage plates of differing designs and heights. Includes: universal power supply, power cord, manual, standard plate support adapter (59-2001), 12 month parts and labor warranty; 1 unit. Note: This instrument was called 4s3 before. Learn more about the Discontinuation of 4s3 Heat Sealer and X-Seal

IntelliXseal SA Adapters and Accessories >>



Overview

• With variable temperature and time settings, sealing conditions are easily optimized to produce a 100% seal, eliminating sample loss
• Plate and seal are placed on the holder, the "Operate" button pressed and the drawer automatically closes
• The sealing process is controlled by an electric mechanism; this unique feature eliminates operator variation, giving a consistent seal every time and reducing the damage caused to microplates by over-sealing


Sealing Parameters

request quote or demo

Key Features

Real time display

• Rapid heating element to allow for a quick start up within minutes
• Real time temperature display to allow monitoring of heating process

Energy saving functions

• When idle, unit automatically switches to standby mode: heating element temperature reduces to 60°C to save energy
• When idle for longer periods, it automatically switches off for added safety
• Triggering of standby and switch off modes can be adjusted to suit user’s needs

Plate adapters and sealing aids

• Triggering of standby and switch off modes can be adjusted to suit user’s needs
• Unique and cost saving adapter system
• Included standard plate carrier (59-2001) for sealing deep well plates and most skirted plates
• Additional plate carrier (59-2003, optional extra) for all 96 well PCR plates
• Both plate carriers can be combined for easier handling of shallow well plates, e.g. 384 well PCR plates
• For better sealing of films with a tendency to curl, 4titude offers sealing aids
• A weighted platen (59-2008) for use with deep well blocks can be ordered separately
• A sealing frame for use with all other plate designs is supplied when ordering the optional 59-2009 adapter
• The sealer allows for sealing of Random Access Plates with the corresponding Random Access Heat Seals using the Random Access adapter (59-2005)

Plate formats

• SBS standard polypropylene and polystyrene plates and deep well blocks
• PCR plates including skirted, semi-skirted and non-skirted formats
• Random Access PCR Plates

RS-232 port for automation integration

• RS-232 port enables unit integration into most automated systems

Specifications

Parameter	IntelliXseal™ SA Semi-Automatic Sheet Heat Sealer
Dimensions (W x L x H)	181 x 275 x 310mm
Sealing temperature range	60-200°C
Weight	9kg
Voltage	110/230V
Power	300W (max)













How To Seal FrameStar^® 96 Well Semi-Skirted PCR Plates



How to Seal 96 Well Non-Skirted PCR Plates



How to Seal a Deep Well Plate



How to Seal Tube Strips and Plate Segments



Learn more about this instrument
