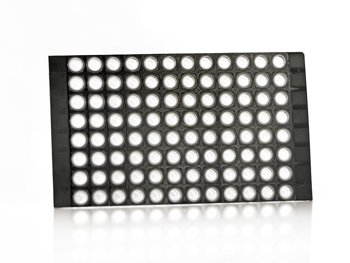

Vertically and horizontally pre-perforated plate which easily snaps into part plates, 8 well strips, 12 well strips, or even individual tubes; 96 well format plate with 0.1 ml polypropylene wells and a polycarbonate frame

4titude®'s FrameStar® Low Profile Break-2-Ways plates allow for the most flexible, efficient and cost-effective use of FrameStar® PCR plates, ensuring not a single tube is wasted.

Our Low Profile Break-2-Ways plates utilise the 2-component design of the FrameStar® range, which combines the advantages of thin-walled polypropylene tubes for optimum PCR results and a rigid frame portion for easy and reliable handling.

For more information on the features and benefits of the FrameStar® range of 2-component PCR plates, please click here »

Technical Specifications

Plate features

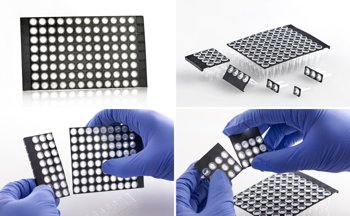

• The plates can be broken up in both 8-strip vertical and 12-strip horizontal directions, resulting in individual strips, part strips, or even individual tubes, giving you the highest range of flexibility

• Breaking a plate is more accurate, more convenient, and safer than cutting it with scissors, as it avoids damaging the sealing rings and contamination of the wells

• Plates can be filled, sealed and separated for storage, processing or distribution

• Easy to break at any temperature

• The plate can be adapted to individual pipetting schemes without the need to waste empty wells

• Separated strips or tubes can be used for the positive control to avoid contamination of the samples

• Compatible with all instruments that fit non-skirted, low profile plates. NB: In some cases you may have to break off the end tabs for it to fit

• Low profile, 0.1 ml wells, <100 µl working volume, with a 200 µl total well capacity when used with sealing options

• Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT, qPCR) results

• Compatible with standard multichannel pipettes

_{FrameStar® is covered by one or more of the following US patents or their foreign counterparts, owned by Eppendorf AG: US Patent Nos. 7,347, 977 and 6,340,589. FrameStar® is a registeredtrademark owned by 4titude®Ltd}
